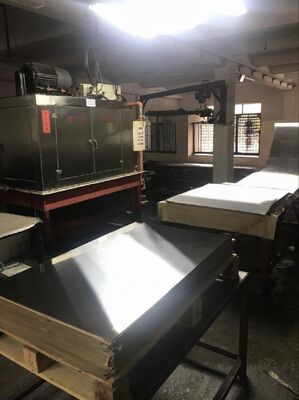

PCB & CCL SUS630T High-Hardness High-Precision Lamination Press Plate High Temperature Resistant, Corrosion Resistant Steel Plate for Circuit Board & Copper Clad Laminate Production
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | MK |
| मॉडल संख्या: | एमकेएसपी-एस630टी |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 50 पीसी |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | समुद्र या वायु परिवहन के लिए लंबी दूरी के लिए उपयुक्त, अंदर उचित नरम सुरक्षा सामग्री के साथ मजबूत प् |
| प्रसव के समय: | 10-20 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 10000 वर्ग मीटर प्रति माह |
|
विस्तार जानकारी |
|||
| कच्चा माल: | उच्च गुणवत्ता वाला घरेलू SUS630T स्टेनलेस स्टील | मानक मोटाई: | 1.0-2.0 मिमी |
|---|---|---|---|
| अधिकतम चौड़ाई: | ≤1300 मिमी | अधिकतम लंबाई: | ≤2410मिमी |
| प्रोडक्ट का नाम: | पीसीबी और सीसीएल SUS630T लेमिनेशन प्रेस प्लेट | सतह का खुरदरापन: | Ra≤0.15μm, Rz≤1.5μm |
| प्रमुखता देना: | SUS630T high-hardness lamination press plate,high-temperature resistant steel plate for PCB,corrosion resistant CCL production steel plate |
||
उत्पाद विवरण
PCB & CCL SUS630T High-Hardness High-Precision Lamination Press Plate
MKSP-S630T high-precision lamination press plate utilizes premium domestic SUS630T stainless steel materials, delivering stable and reliable lamination performance with superior cost competitiveness. This specialized lamination steel plate for PCB and CCL production features exceptional thermal performance, high hardness, and outstanding corrosion resistance.
Product Advantages
SUS630T High-Hardness Lamination Press Plate | High Precision, High Temperature Resistance, Energy-Saving & Cost-Effective Solution for PCB & CCL Lamination
| Feature | Specification & Benefits |
|---|---|
| Raw Material | High-quality domestic SUS630T stainless steel with mature, stable material formula |
| Cost Performance | Reliable industrial-grade lamination quality with highly competitive pricing |
| Thermal Performance | Excellent thermal conductivity and stable thermal expansion coefficient for significant energy and cost savings |
| Material Performance | High hardness up to 50HRC±2, excellent corrosion resistance and mechanical stability |
| Equipment Compatibility | Universally compatible with all types of industrial lamination steel plate washing machines |
| Application Scenarios | Professional high-precision press plate for PCB printed circuit board and CCL copper clad laminate lamination processes |
Standard Sizes
PCB Lamination Press Plate (L × W, mm):
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
CCL Lamination Press Plate (L × W, mm):
1910×1270, 2210×1270, 2220×1270
1910×1270, 2210×1270, 2220×1270
Detailed Performance Parameters
| Performance Parameter | Mass-Lam Plate (SUS630T) | Pin-Lam Plate (SUS630T) |
|---|---|---|
| Thickness | 1.0-2.0mm | 1.0-2.0mm |
| Max Width | ≤1300mm | ≤1300mm |
| Max Length | ≤2410mm | ≤2410mm |
| Thickness Tolerance | ±0.10mm | ±0.10mm |
| Surface Roughness | Ra≤0.15μm, Rz≤1.5μm | Ra≤0.15μm, Rz≤1.5μm |
| Positioning Hole Tolerance | -- | ±0.10mm |
| Standard Bushing Slot Tolerance | -- | 0 ~ +0.10mm |
| Warpage Degree | ≤3mm/M | ≤3mm/M |
| Length & Width Tolerance | ±1mm | ±1mm |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² |
| Extensibility | ≥5% | ≥5% |
| Hardness | 50HRC±2 | 50HRC±2 |
| Max Working Temperature | ≤400℃ | ≤400℃ |
| Parallelism | ≤0.03mm | ≤0.03mm |
| Diagonal Deviation | 1-2mm | 1-2mm |
| Thermal Conductivity (@300℃) | ≥18W/MK | ≥18W/MK |
| Average Thermal Expansion Coefficient | 10~12 (10⁻⁶/℃) | 10~12 (10⁻⁶/℃) |
